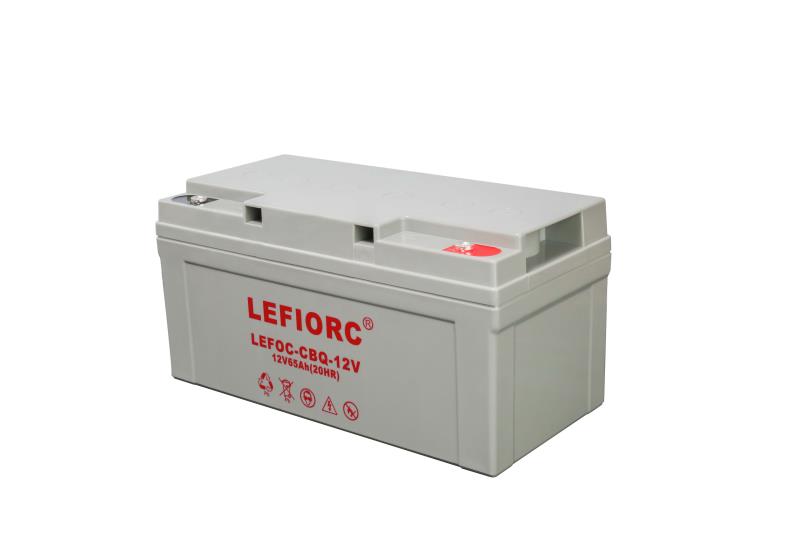

LEFOC-CBQ-12V 系列☆☆
产品结构BATTERY STRUCTURE
01-亮子/盖子:符合UL94HB与UL94V-0标准的ABS材料:
02-负极板:采用独特的铅钙板栅,提高析氢电位.减少了气体的析出:
03-隔板:优质AGM隔板:
04-正极板:采用独特的铅钙板栅,降低了板栅的腐蚀速率,延长了电池的使用方命:
05-端子:采用钢端子,优良的传导性和较高的耐磨性,增强了大电流故电性能,瞬间起动电流显著提高:
06-安全阀:开闭阔灵敏,阻止外部空气浸入,释放多余气体保障安全,保持- -定范围的气压促进气体复合,
Container/Cover : Made of UL94HB and UL 94V-0 ABS Plastic;
Negative Plates ; Use the special PbCa lly grids optimize the
recombination eficiency and less gassing;
Separator : High quality AGM separator;
Positive Plates : PbCa grids minimize corrosion and prolong lite;
Terminal Post : Cooper material with maximum conductivity
enhance the high current rapidly,
Vent Valve : Allows the release of excess gas automatically for safety,
规格参数 Specification parameters
电池型号 | 额定定压 | 额定容量 | 额定放电电流 | 最大放电电流 | 外观尺寸 | 容量 | 重量约 | 均充电压 | 浮充电压 | 端子类型 | |
12V17AH | 12 | 17 | 0.85 | 51 | 180*77*167 | 17 | 5KG | 14.4 | 13.8 | T3 | |
12V24AH | 12 | 24 | 2.4 | 48 | 166*126*180 | 24 | 7.5 | 14.4 | 13.8 | T4 | |
12V38AH | 12 | 38 | 3.8 | 76 | 197*166*174 | 38 | 11.7 | 14.4 | 13.8 | T14 | 10小时率 |
12V50AH | 12 | 50 | 5 | 100 | 230*138*210 | 50 | 15 | 14.4 | 13.8 | T14 | |
12V65AH | 12 | 65 | 6.5 | 130 | 230*138*210 | 65 | 19.6 | 14.4 | 13.8 | T14 | 10小时率 |
12V80AH | 12 | 80 | 8 | 160 | 350*166*176 | 80 | 24.5 | 14.4 | 13.8 | T14(下旋) | |
12V100AH | 12 | 100 | 10 | 200 | 330*173*215 | 100 | 29.5 | 14.4 | 13.8 | T16(下旋) | 10小时率 |
12V120AH | 12 | 120 | 12 | 240 | 407*173*233 | 120 | 32.5 | 14.4 | 13.8 | T16(下旋) | |
12V150AH | 12 | 150 | 15 | 300 | 484*171*240 | 150 | 40.5 | 14.4 | 13.8 | T16(下旋) | |
12V180AH | 12 | 180 | 18 | 360 | 522*240*230 | 180 | 51.5 | 14.4 | 13.8 | T18(下旋) | |
12V200AH | 12 | 200 | 20 | 400 | 522*240*230 | 200 | 54.0 | 14.4 | 13.8 | T18(下旋) | 20小时率 |
